Application Fields

Applied in industries such as environmental protection, pharmaceuticals, chemicals, papermaking, urban water supply, sewage treatment, and cement grinding aids.

Advantages and Characteristics

1. The pump body is safe and leak free

2. Small size, easy to install

3. High precision, accuracy ± 2%

4. High precision rotor bearings

5. The output can be adjusted freely

6. Aluminum alloy outer box, sturdy and durable

7. Imported composite film with high process requirements and long service life

8. Various pump head materials can provide users with the most suitable material for conveying liquids

9. Flexible interface selection, standard PVC mesh tube bottom valve and injection head.

10. Transmission does not require oil bath lubrication

11. Top 10 Chinese brand motors, motor with junction box, protection level raised to E level IP44

Product Features

The flow control mode of the pump has manual control and automatic control, and automatic control can be achieved through frequency conversion.

2. Parameter range: Flow rate between 3-3000L/H, maximum working pressure of 1.2MPa optional, flow stability accuracy can be controlled within 1%

3. Suction capacity: ≤ 2 meters (water column)

4. The product does not have a safety relief device. When forming a system, the outlet pipeline of the pump needs to consider installing a safety valve to improve operational safety

Materials available: PVC, PVDF, S304, 316L and other alloy materials (such as alloy 20, 904L, titanium alloy, Hastelloy, etc.)

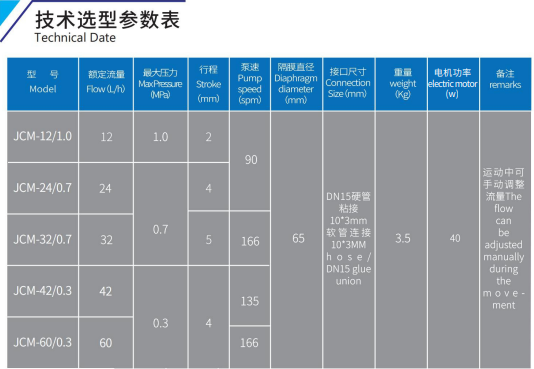

Selection

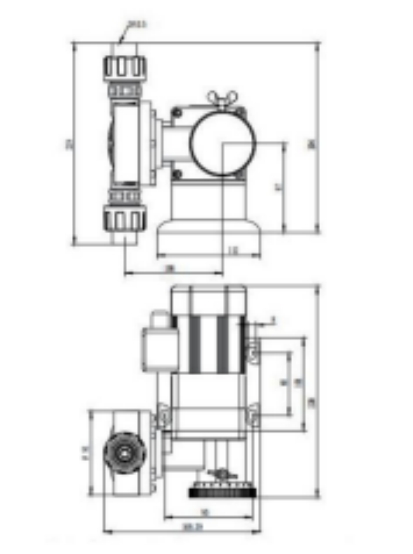

Installation
