Application Fields

The product is suitable for industries such as environmental protection, water treatment, pharmaceuticals, and new materials, as well as for transporting corrosive slurries and hazardous chemicals.

Advantages and Characteristics

1. The pump body is safe and leak free.

2. Small size, easy to install.

3. High precision, accuracy ± 2%

4. High precision rotor bearings.

5. The output can be adjusted freely.

6. Aluminum alloy outer box, sturdy and durable.

7. Imported composite film with high process requirements and long service life.

8. Various pump head materials can provide users with the most suitable material for conveying liquids.

9. Flexible interface selection, standard PVC mesh tube bottom valve and injection head.

10. Transmission does not require oil bath lubrication.

11. Top 10 Chinese brands of motors, motor with junction box, with protection level raised to E level IP44.

Product Features

The flow control mode of the pump has manual control and automatic control, and automatic control can be achieved through frequency conversion.

2. Parameter range: Flow rate between 3-3000L/H, maximum working pressure of 1.2MPa optional, flow stability accuracy can be controlled within 1%.

3. Suction capacity: ≤ 2 meters (water column)

4. The product does not have a safety relief device. When forming the system, the outlet pipeline of the pump needs to consider installing a safety valve to improve operational safety.

Materials available: PVC, PVDF, S304, 316L and other alloy materials (such as alloy 20, 904L, titanium alloy, Hastelloy, etc.)

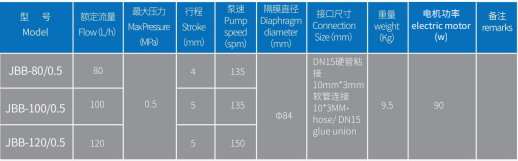

Selection

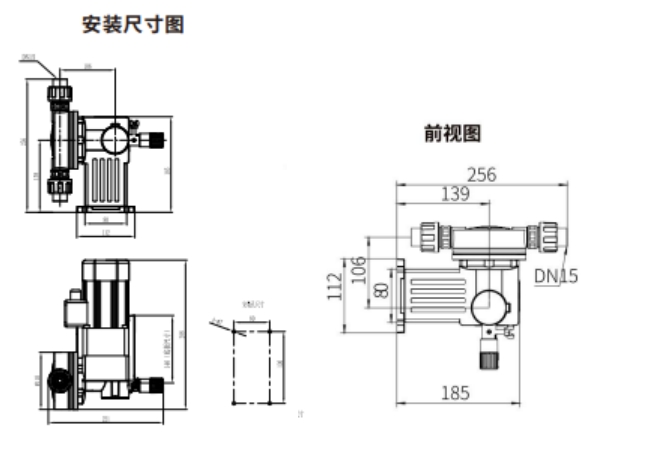

Installation
